Project 6 Perspex SB Turntable
No Cartridge
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

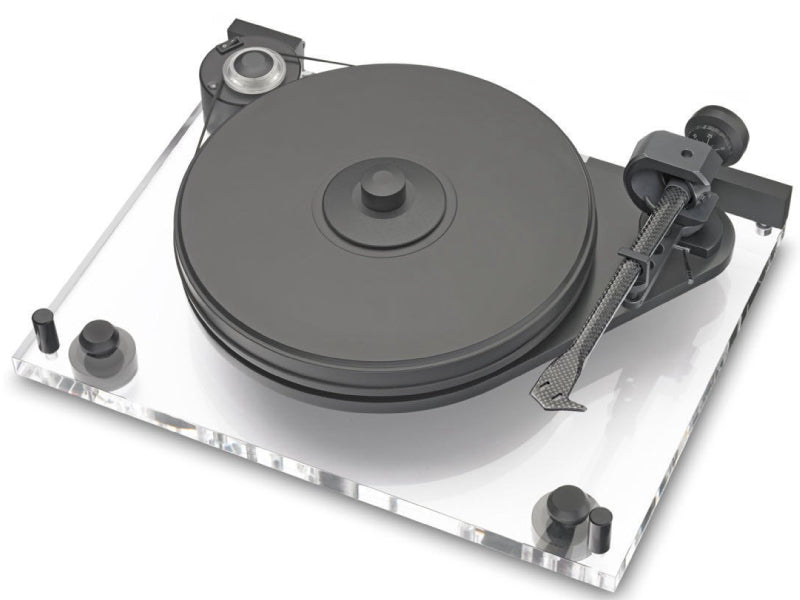

The 6 Perspex SB takes the same proven design as previous 6 Perspex designs, but utilises a far superior motor to give vinyl enthusiasts an even more appealing high-end vinyl spinner.
The perimeter drive-belt mechanism was inspired by the introduction of the RPM 10 Carbon turntable, which uses a fully-decoupled motor. With the 6 Perspex SB, the motor sits within its own cut-out inside the main plinth, lined with damping material for reduced resonance. The motor itself is an AC design, which is regulated by its own built-in speed controller. This speed controller not only offers easy switching between 33 and 45rpm, but it also generates an entirely fresh new sine wave for the motor – filtering out the fluctuations and distortions associated with a typical mains supply, for reduced resonance.
The 6 Perspex SB stands out as a beautifully engineered machine thanks to the pristine acrylic plinth, which is accented by the striking sub-chassis, platter and TPE-damped aluminium coned feet, as well as the new motor.
The turntable’s sub-chassis is made of Corian®, a solid-surface material renowned for its isolation properties. This sub-chassis is then isolated from the main plinth by magnetic power, effectively creating a “floating” platform free from unwanted vibrations. The precision-balanced vinyl sandwich platter rides on the sub-chassis utilising an inverted main bearing, which combines a stainless-steel axle with a ceramic ball. The platter’s 4mm thick vinyl top-layer is the perfect interface for a playing record, and eliminates the need for any form of turntable mat, which can have a detrimental effect on the sound performance of high-end turntables. The platter is finished with a threaded spindle, to accommodate the supplied screw-able record clamp.
The 6 Perspex SB is finished with Pro-Ject’s coveted 9CC Evolution tonearm for a true high-end experience. The 9” tonearm boasts a one-piece conical carbon fibre tube, TPE-damped counterweights and an inverted bearing design that allows for perfect tracking and minimal resonance, even with demanding pick-up cartridges.

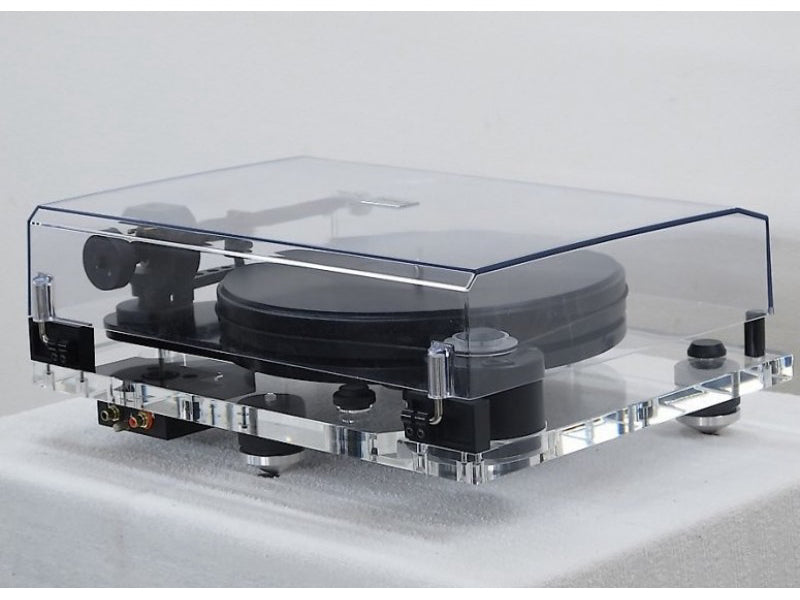

The 6 Perspex SB is the complete audiophile turntable, but at a very appealing price. A top grade phono cable is supplied in the way of the Connect-IT E (123cm) and a protective dust cover tops off this incredible package.
Key Features:
- Solid acrylic plinth
- Sub-chassis made from Corian with magnetic suspension
- Acoustically inert sandwich construction platter combined with MDF and vinyl layer as mat
- Inverted main bearing with ceramic ball/plate
- Belt drive with AC motor with DC driven AC generator
- Electronic speed control with 33/45 rpm switching
- Pre-mounted 9" 9CC Evolution tonearm
- Tonearm bearings with ABEC 7 ballraces
- Connect-IT Phono E cable supplied
Technical Data...
Nominal Speeds: | 33 / 45 RPM (Electronic) |
Plinth Construction: | Acrylic |
Sub-Chassis: | Magnetically Supported Corian |
Platter: | 300mm Sandwich-Type (2kg) |
Turntable Feet: | Aluminium (Sorbothane-Damped) |
Speed Variance: | ±0.06% |
Wow & Flutter: | ±0.10% |
Signal to Noise: | -73dB |
Tonearm: | Pro-Ject 9CC Evolution |
Effective Tonearm Length: | 9" (230mm) |
Effective Tonearm Mass: | 8g |
Overhang: | 18mm |
Supplied Counterweights: | For Cartridges Weighing... 5-7g, 7-10g, 9-11g & 10-14g |
Downforce Range: | 10 - 35mN |
Outboard Voltage: | 15V / 800mA DC |
Power Consumption: | 6W / <0.3W (Standby) |
Included Accessories: | Dust Cover, Record Clamp, RCA Cables |
Dimensions: | 460 x 183 x 365mm |
Weight: | 11kg |
