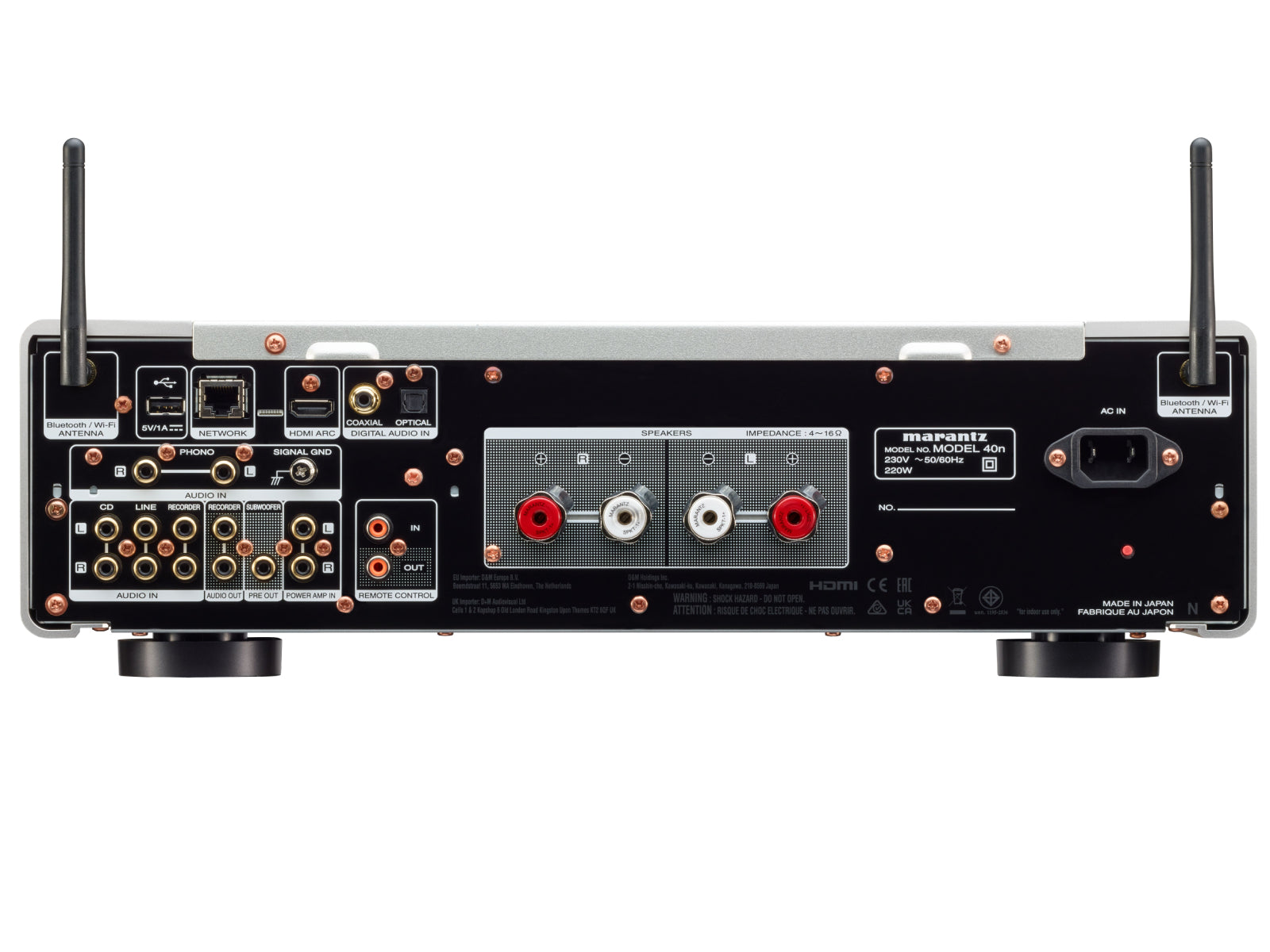

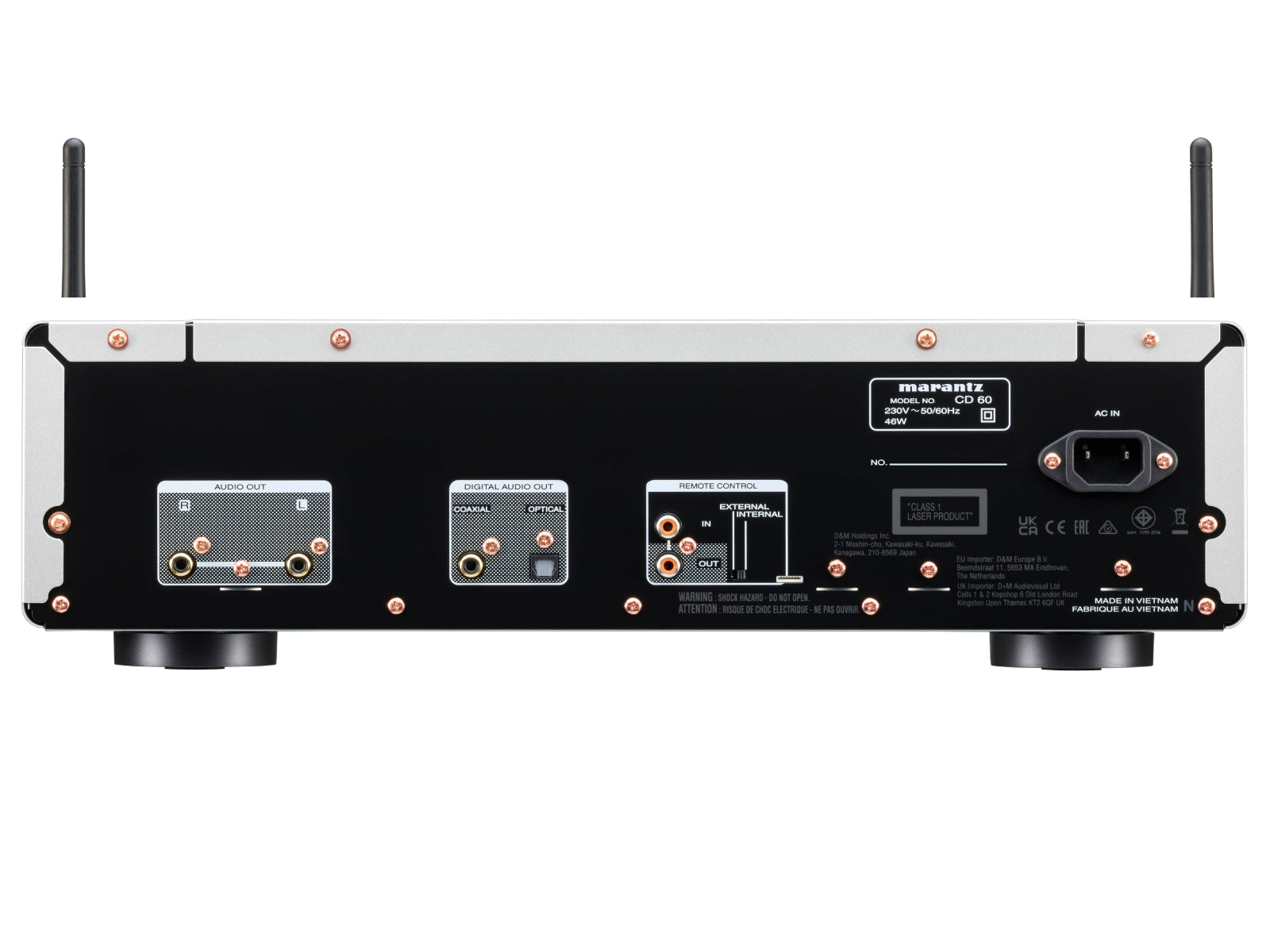

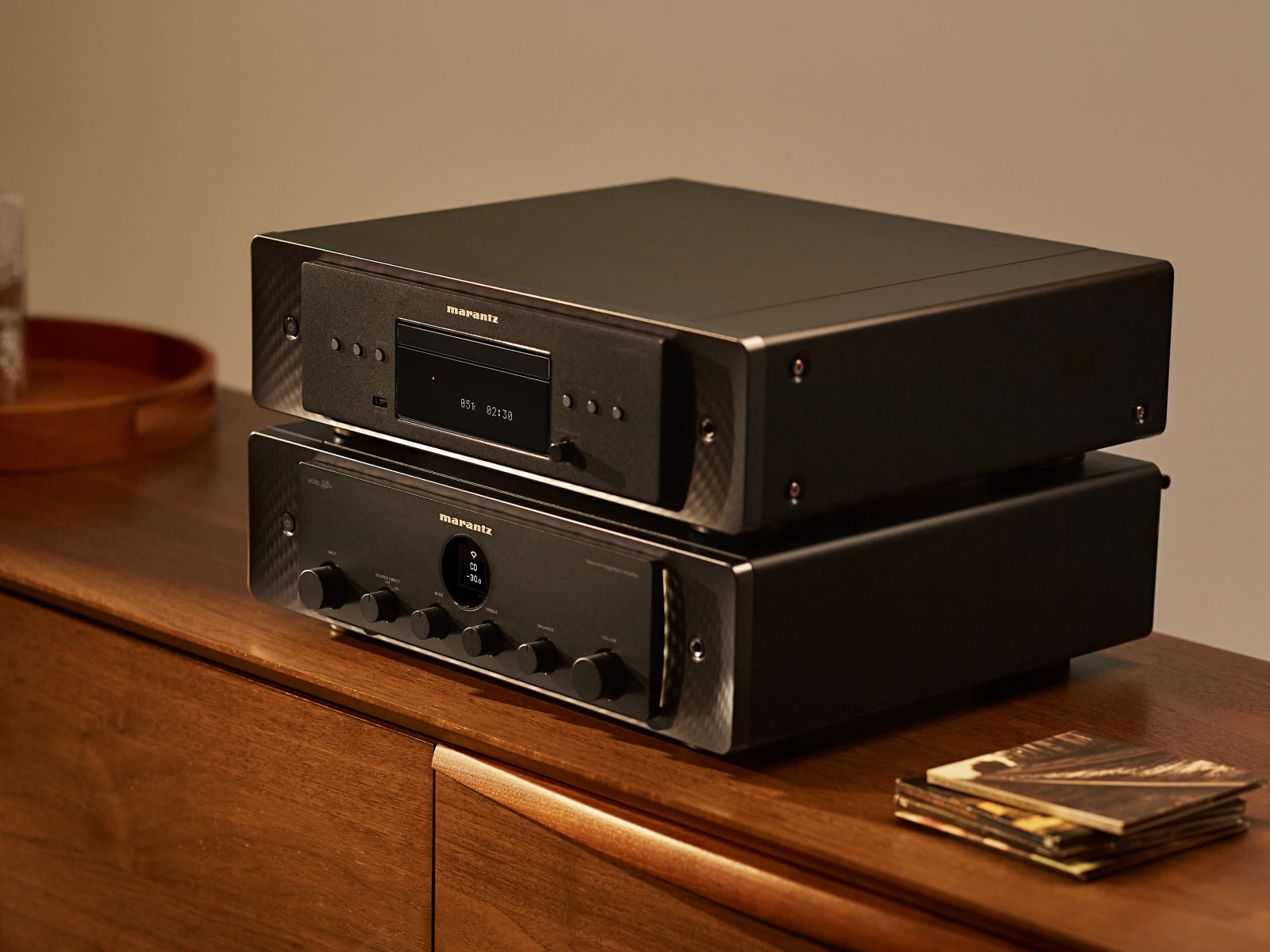

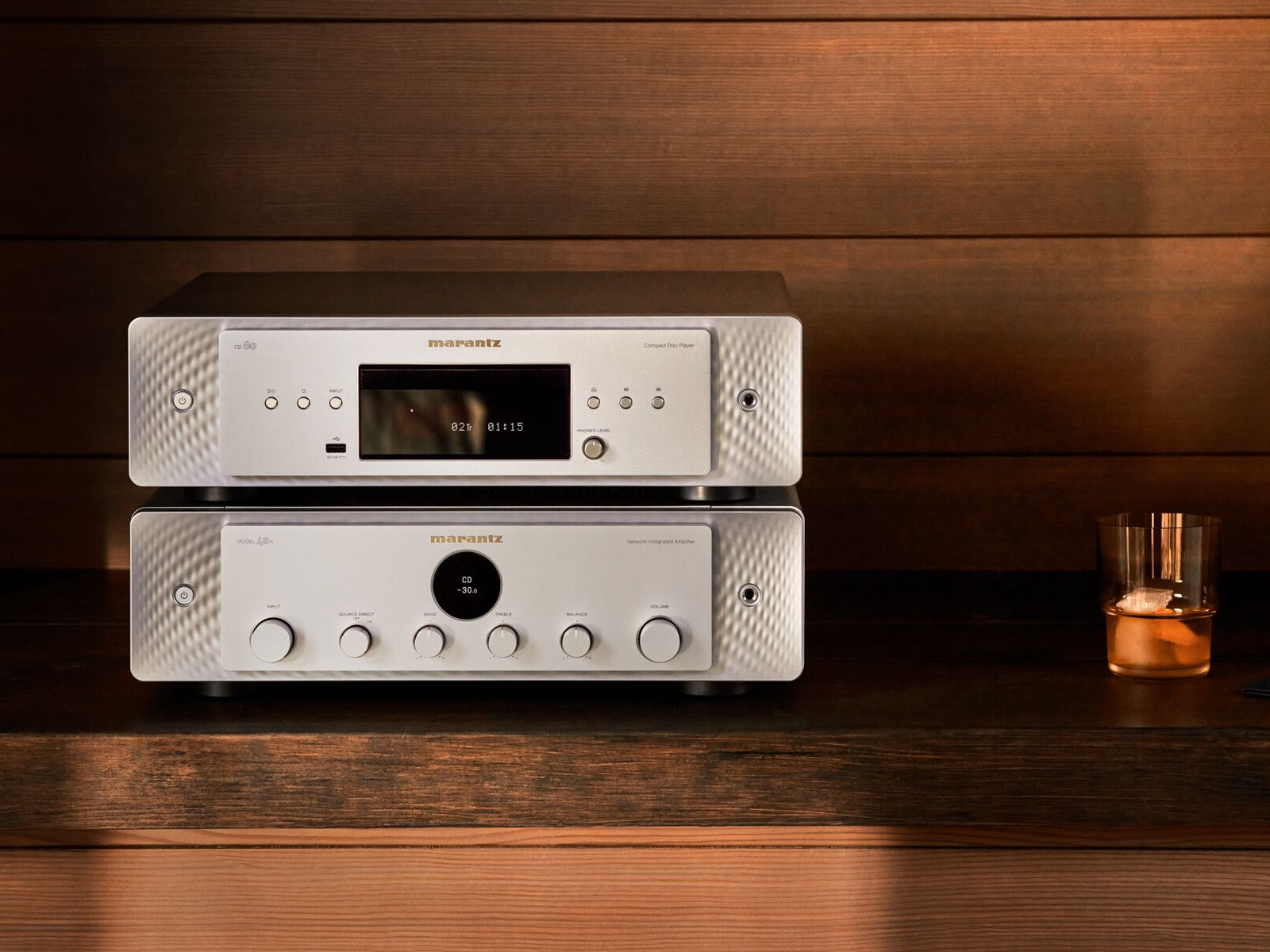

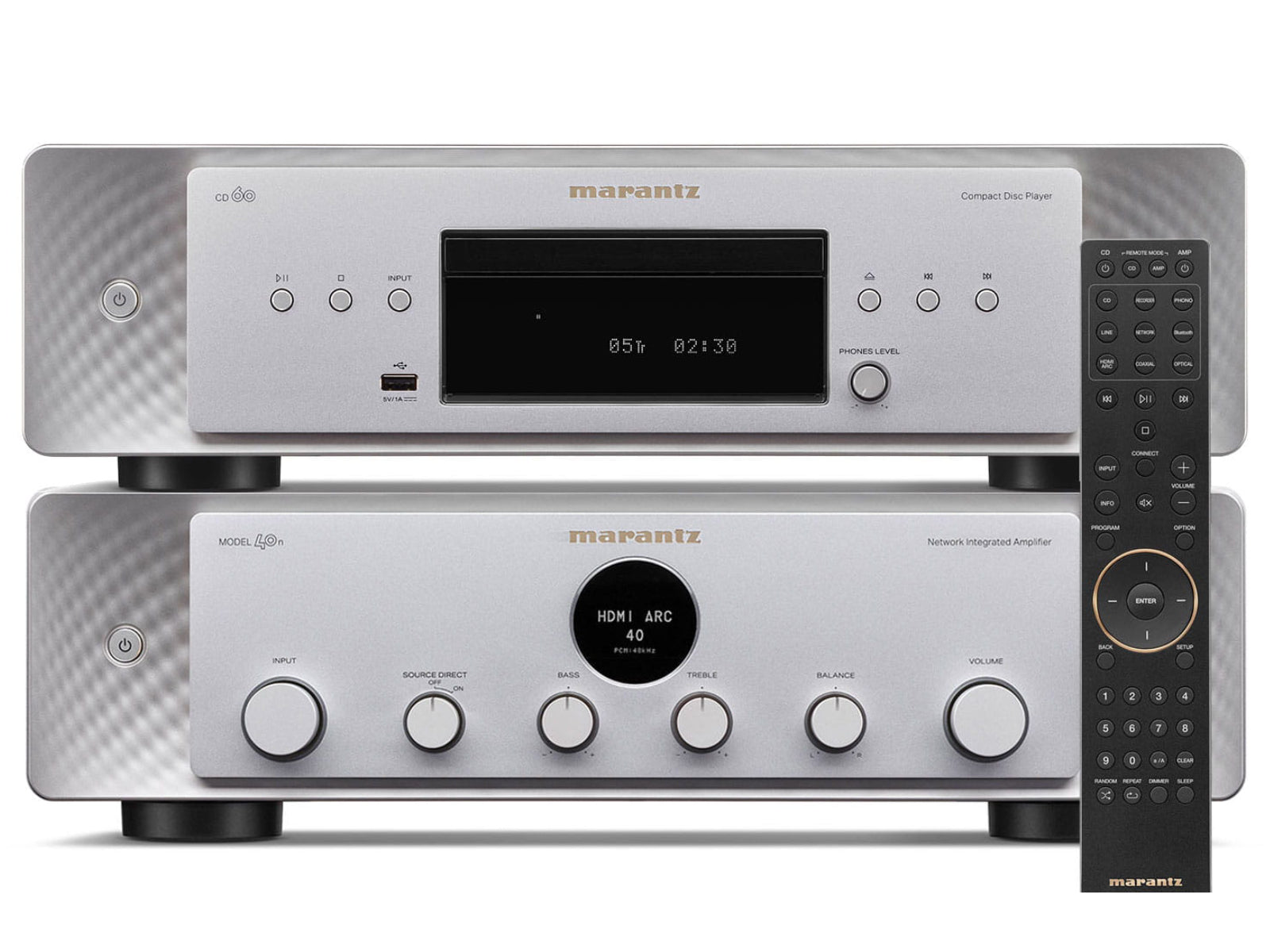

The Model 40n is a modern integrated streaming amplifier, combined with the Marantz CD 60, it is a perfect matching modern hi-fi system. Alowing you to play music from your favourite streming services like Spotify as well as playing CDs. The Marantz CD 60 also has the capability to play higher-resolution music files, in FLAC, WAV, or DSD formats, through its USB connection.
| Marantz Model 40n Specifications | |
| Channels | 2 |
| Sample Rate Digital In | 192 kHz / 24-bit |
| DAC Chip In | ES9016K2M |
| HDAM Version | SA3, SA2 |
| Audio Inputs | 4 |
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency Response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02% |
| Damping Factor | 100< |
| Input Sensitivity: MM | 1.6 mV / 47 kOhm |
| Signal to Noise Ratio: MM/MC | 87dB / - |
| Input Sensitivity: High level | 220mV / 16kOhm |
| Signal to Noise Ratio: High level | 113dB |
| Input Sensitivity: Power Amp Direct IN | 1.5V / 15kOhm |
| Maximum Dimensions (W x D x H) in mm | 443 x 432 x 130 |
| Weight in Kg | 16.7 |
Specifications
CD 60 Specifications |
|
| Unit (W x H x D mm) | 442 x 129 x 396 |
| Net weight | 7.5kg |
| Packaging Dimensions (W x H x D mm) | 525×249×511 |
| Panel Color | Available Colors: Silver/Gold and Marantz Black |
| Front (Center) Panel | Aluminum |
| Frequency response | USB DSD: 2Hz - 50kHz (-3dB) USB PCM: 2Hz - 50kHz (-1.5dB) CD: 2Hz - 20kHz |
| Total Harmonic Distortion | USB DSD: 0.0006% USB PCM 24bit: 0.0005% CD: 0.0015% |
| Signal to Noise Ratio | USB DSD: 110dB USB PCM 24bit: 118dB CD: 118dB |
| Dynamic Range | USB DSD: 110dB USB PCM 24bit: 118dB CD: 101dB |
| Line Output Level | 2.2Vrms |
| Headphone Output Level | 28mW / 32 ohms |
| Power Consumption | 38W |
| at Standby | 0.3W |
| HDAM | New HDAM + HDAM-SA2 |
| Power Transformer | EI |
| Headphone Amp | High slew rate op-amp + HDAM-SA2 |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| Digital Filter | Filter 1, 2 Selectable |
| CD Compatibility | CD / CD-R/RW / WMA / MP3 / AAC |
| Data Disc Compatibility | DSD / WAV / ALAC |
| Fixed Analog Output (RCA) | 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| Headphone Output | 1 |
| Remote Control Bus Terminal | Yes (RC-5 In / Out) w/ External / Internal Select Switch |
| Flasher Input | Yes (U ver) |
| USB A | 1 (Front) Mass Storage Class 5V/1A |
| Support format | FAT 16/32 |
| USB-A: FLAC / WAV / AIFF / ALAC / DSD | Yes / Yes / Yes / Yes |
| DSD Native Playback | Yes |
| USB Firmware Update | Yes |
| Remote Controller | System Remote (Amp and CD Player Control) |
| Unit control (Button) | POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev |
| Unit control (Knob) | 1 Phones Level |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Last Function Memory | Yes |
| Timer Play (Need external audio timer) | Yes On/Off selectable in Menu |
| Auto Standby Mode | Yes |
| Other | Stereo RCA Cable x1 Remote connector cable x1 |
| Accessory Box | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
