Rotel S14 Streaming Amplifier
The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

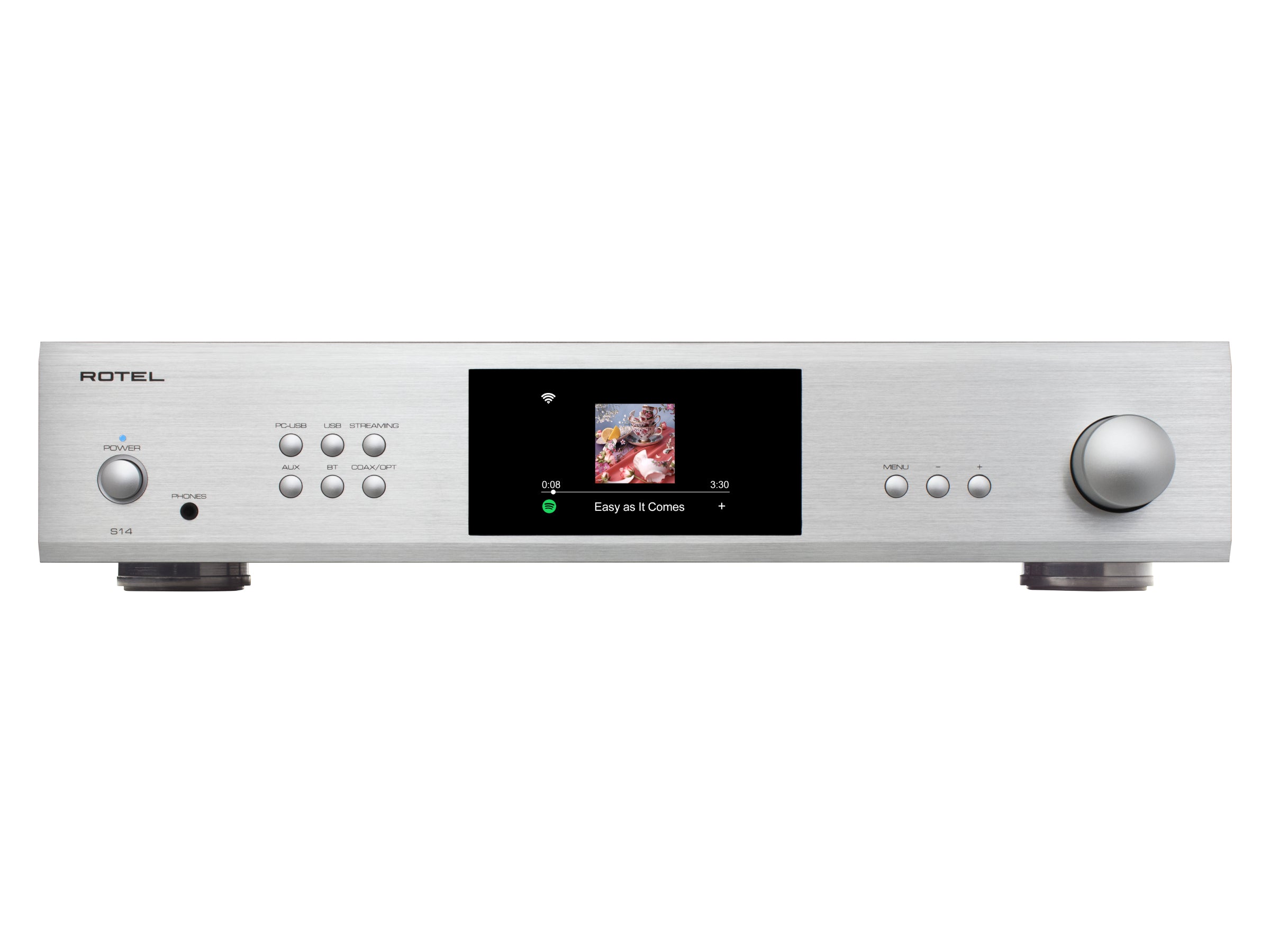

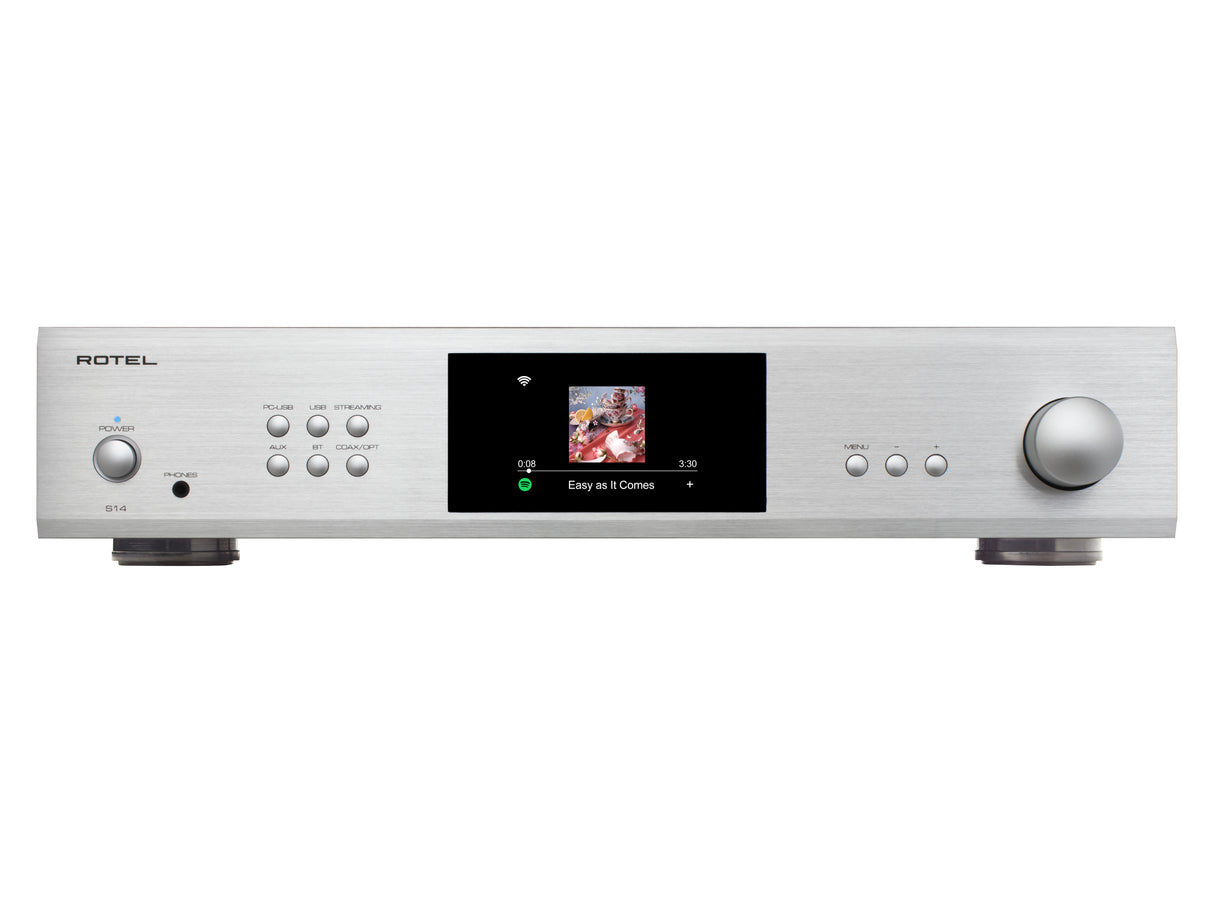

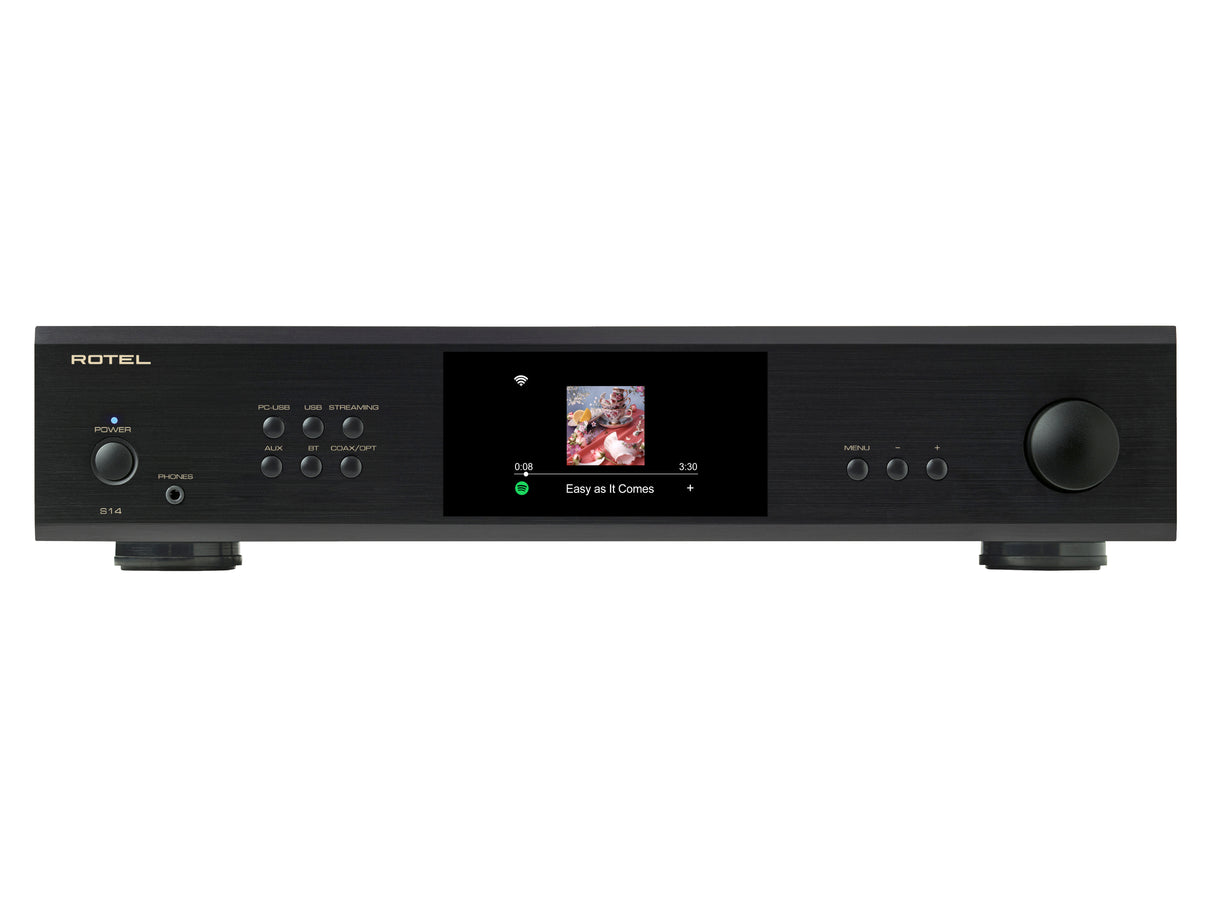

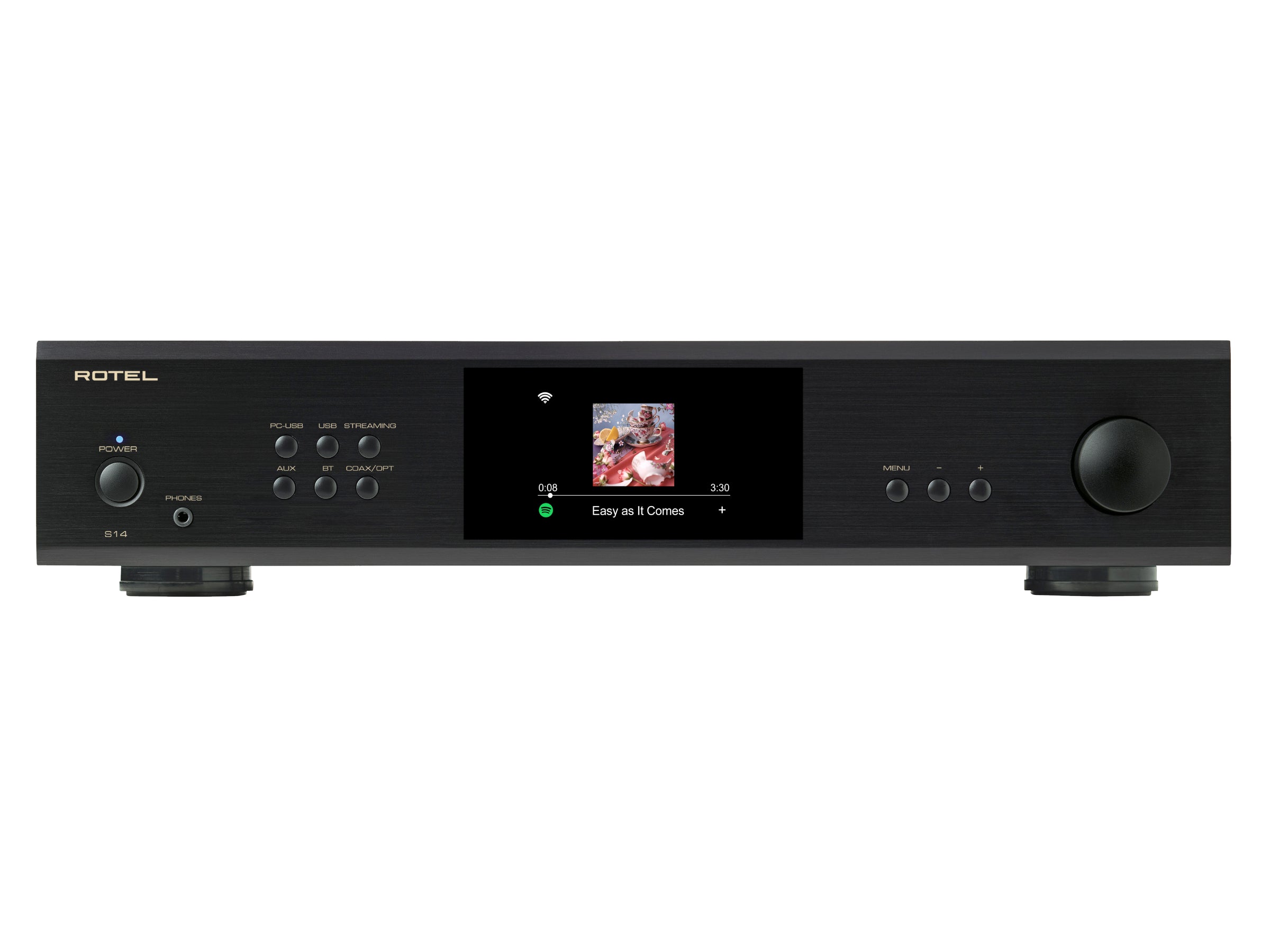

The front panel colour display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.
Stream using your favourite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 and Google Cast for the ultimate ease of streaming your music.
Leveraging over 60-years of audio design experience the S14 renders digital music files including MQA utilizing a 32-bit ESS Sabre Digital to Analog converter. The integrated amplifier circuits feed an array of high current output transistors powered by an oversized toroidal transformer delivering accuracy with exceptional bass control.
Convenient and intuitive the S14 supports both wired and dual-band Wi-Fi network connections for ultimate installation flexibility. Album artwork, track, title, and artist information is presented on the front panel colour graphic display. Simple device setup and configuration is also available using the front panel and included remote control.
Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.

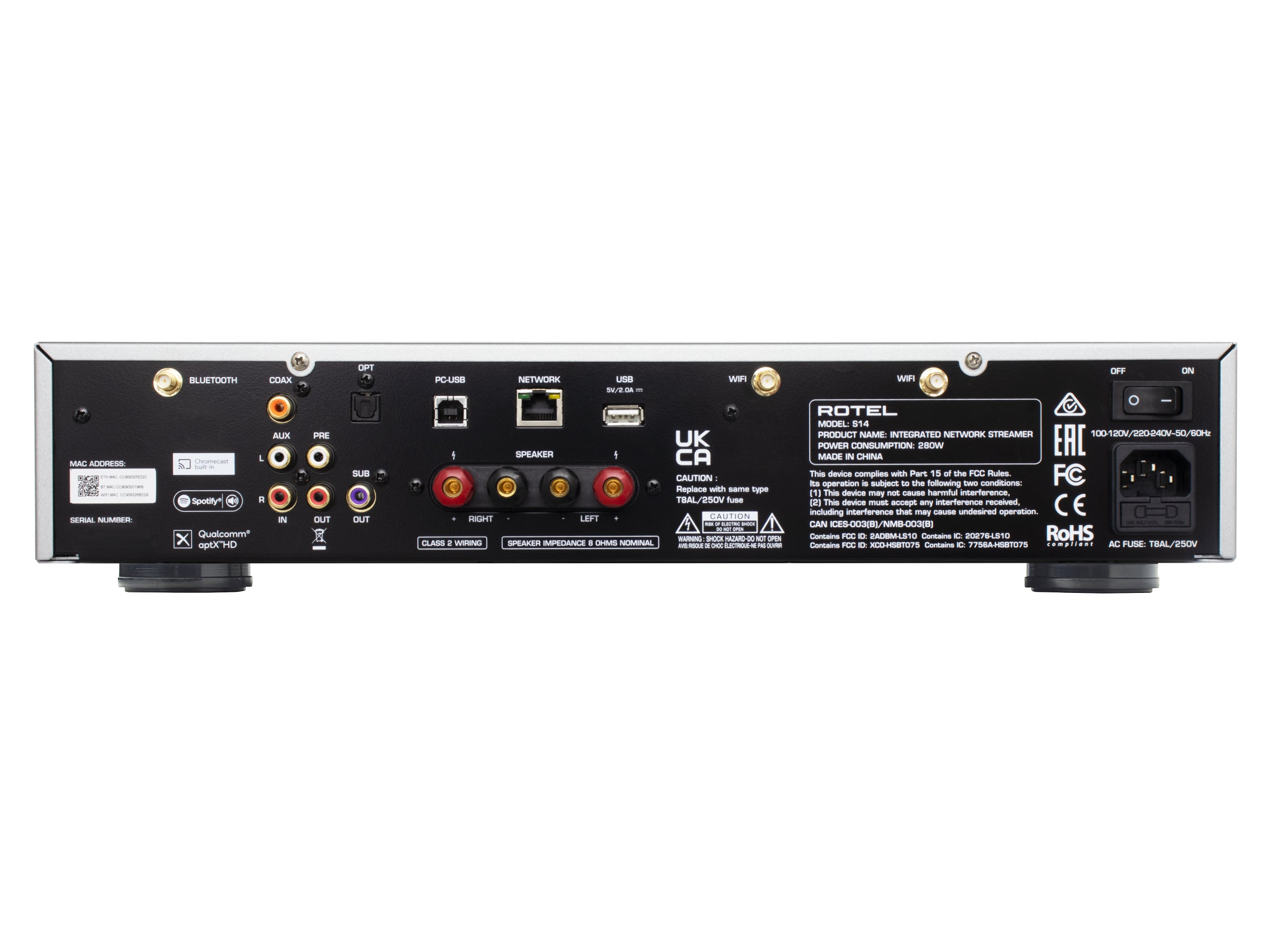

The S14 also includes Coaxial, Optical, Analog RCA, PC-USB and aptXTM HD Bluetooth providing connection to your favourite audio sources such as CD Players, Tuners and Turntables with line-level outputs. A rear USB connection supports playback of MP3, WMA and AAC audio files from flash drives. This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with this Japanese family-owned audio brand.
Specifications
| POWER OUTPUT | 220 Watts / ch (4 Ohms) 140 Watts / ch (8 Ohms) |
| TOTAL HARMONIC DISTORTION (THD) | <0.03% |
| FREQUENCY RESPONSE |
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10 Hz – 70k Hz, (±3 dB, MAX)
|
| S/N RATIO (IHF "A" Weighted) |
Line Level Inputs: 103dB
Digital Inputs: 105dB
|
| DIMENSIONS (W × H × D) |
431 x 144 x 425 mm
17” x 5 7/8” x 16” |
| FRONT PANEL HEIGHT |
132.6 mm / 5 1/4”
|
| POWER REQUIREMENTS |
230V, 50Hz
|
|
POWER CONSUMPTION
|
380W
|
|
STANDBY POWER CONSUMPTION
|
<0.5W
|
|
NET WEIGHT
|
15.7 kg, 34.6 lbs
|
|
BTU RATING (4Ω, 1/8th power)
|
1027 BTU/h
|
|
NTERMODULATION DISTORTION
|
(60 Hz : 7k Hz, 4:1)
<0.03%
|
|
DAMPING FACTOR
|
290
|
|
INPUT SENSITIVITY
|
Line Level Inputs: 0.78V
Digital Inputs: -8dBfs
|
|
INPUT IMPEDANCE
|
Line Level Inputs:46k Ohms
Digital Inputs: 75 Ohms
|
|
INPUT OVERLOAD
|
Line Level Inputs: 4.1V
|
|
TONE CONTROLS
|
±10dB at 100Hz / 10kHz
|
|
HDMI
|
Support eARC function
|
|
COAX/OPTICAL DIGITAL INPUT SIGNALS
|
SPDIF LPCM (Up to 24-bit/192kHz)
|
|
PC-USB
|
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Ready
|
