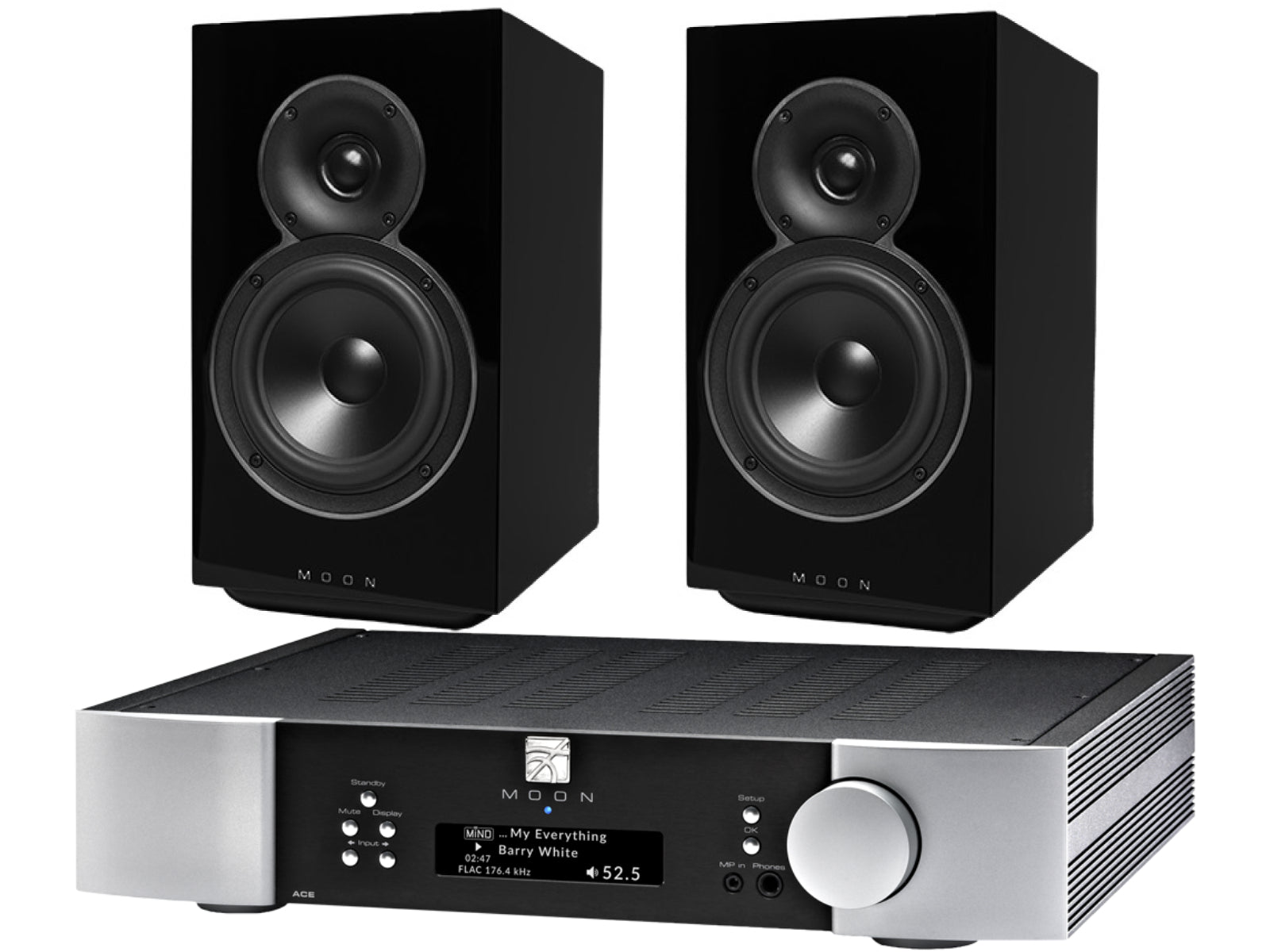

Ex Demonstration MOON ACE streaming amplifier with MOON Voice 22 Speakers in good condition supplied in it's original box.

The multi-award-winning MOON ACE all-in-one music system now has a new award when combined with the MOON Voice 22: EISA HiFi System of the year 2022. Available at a considerable cost saving when purchased as a complete system, the ACE + Voice 22 is the ultimate in system matching and fully takes the stress out of trying to find the perfect audio combination.

Intuitive and easy-to-use, the ACE is Spotify & TIDAL Connect compatible, Roon Ready and allows the playback of all major file formats, including DSD, and MQA (via local files and TIDAL Master files). Together with the ACE the Voice 22 loudspeakers deliver the renowned rich and natural MOON sonic signature of visceral tight bass, transparent midrange, precise natural highs and lifelike sound. They have a wide soundstage that gives the space to allow every small detail to flourish and for the deep, clean bass to expand.

Turntable owners have not been forgotten as the moving magnet phono stage allows the ACE to bring the best out of any vinyl record.

The finest sounding and most complete “all-in-one” available, the ACE can do virtually anything expected of a high-performance audio component of this nature. Accentuated by Simaudio’s world renowned MOON sonic signature – visceral tight bass, transparent midrange, precise natural highs – along with lifelike sound, plus countless features, the ACE will be the “heart and soul” of all your musical indulgences.

Available in the following finish:

Black (standard)

Two Tone

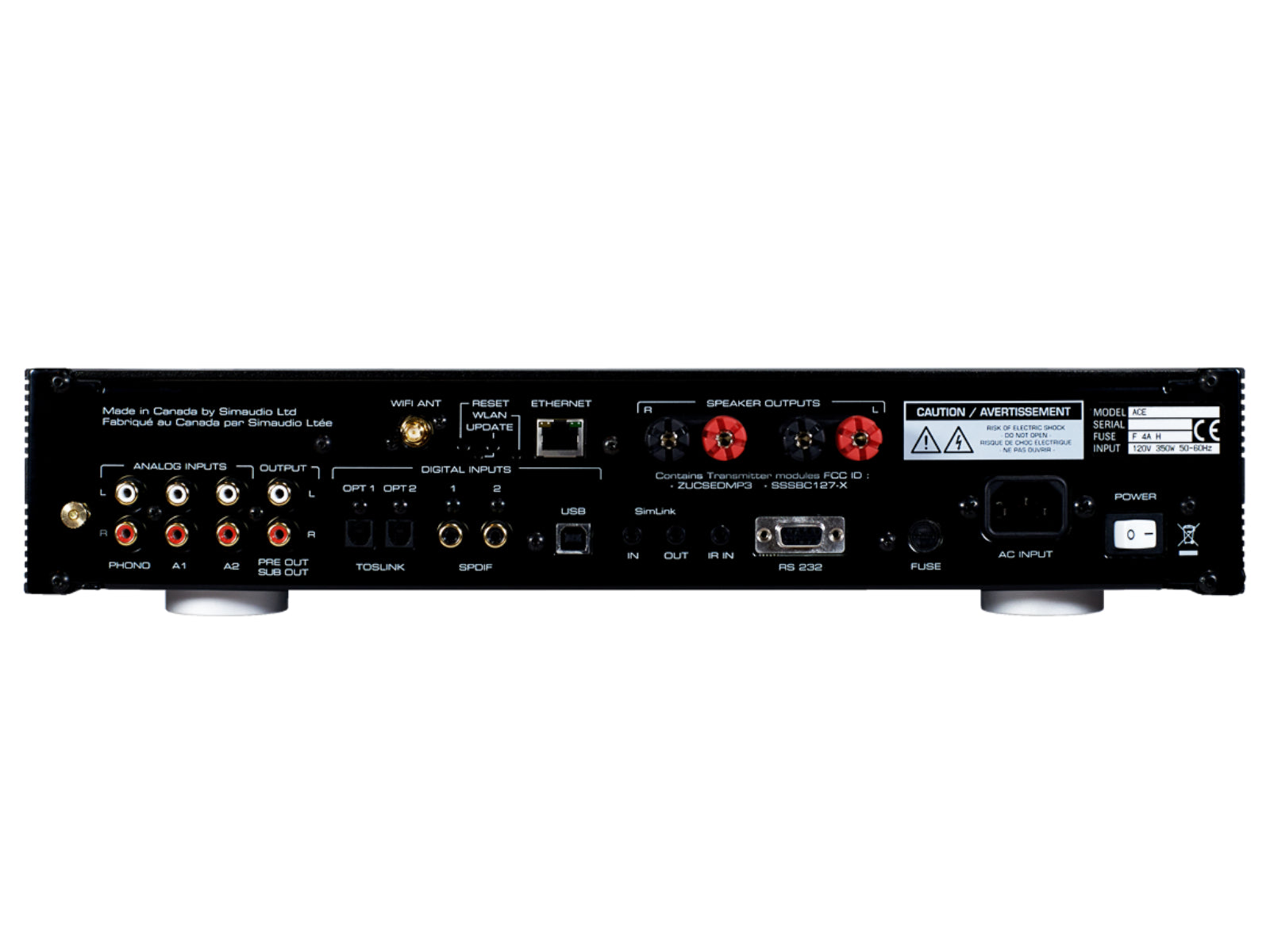

• 3 line-level inputs including a front-mounted 1/8” mini-jack for personal media players.

• Headphone output on 1/4” jack located on the front panel.

• Seamless integration with our MiND app.

• 8 digital inputs include USB (hi-res audio), SPDIF (2), Optical (2),Qualcomm aptX audio for Bluetooth®, WiFi and Ethernet.

• OLED type screen which provides more detailed information.

• Simple MiND setup via on-board software menu.

• Moving magnet phono preamplifier input.

• Analog inputs are configurable to “pass-through” mode, which bypasses the gain stage to accommodate components like a home-theater processor, whose own volume control is used.

• Roon Ready device

• Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services

• MQA decoding

• Multi-room synchronized playback

• Output Power at 8Ω
  50 W per channel

• Input Sensitivity
  370 mV - 3.0 V RMS

• Input Impedance
  22,1 kΩ

• Gain
  37 dB

• Signal-to-noise Ratio
  100 dB @ full power

• Frequency response (full range)
  10 Hz - 80 kHz +0/-3 dB

• Crosstalk
  -100 dB

• THD (20Hz - 20kHz @ 1 W / 50 W)
  0.02 % / 0.02 %

• Intermodulation distortion
  0.005%

• PCM Bit-depth range / sampling rates
  16 - 32 bits / 44.1 - 384 kHz

• DSD sample rates
  DSD64, DSD128 & DSD256

• Shipping weight
  24 lb / 11 kg

• Dimensions (width x height x depth)
  16.9 x 3.5 x 14.4 in
• 42.9 x 8.9 x 36.6 cm

Voice 22 Specifications

Tweeter : 29mm soft dome with waveguide

Woofer : 155mm mineral-filled polypropylene cone

Sensitivity : 89dB/2.83V/1m

Nominal Impedance : 6Ω

Recommended Power : 50W – 150W Frequency Response (±3dB) : 55Hz – 24kHz

Frequency Range (-6dB) : 45Hz – 30kHz

Crossover : 1.5kHz

Dimensions (W x H x D) : 20cm x 35cm x 29cm Weight : 10.5kg
